2.4 Inch TFT LCD IP67 Waterproof endoscopy

2.4 Inch TFT LCD IP67 Waterproof Endoscopy Waterproof IP67 for  Auto  Waterproof Portable Optical Scope
CE,FCC&RoSH for       Waterproof Portable Optical Scope OEM&ODM Service for     Waterproof Portable Optical Scope

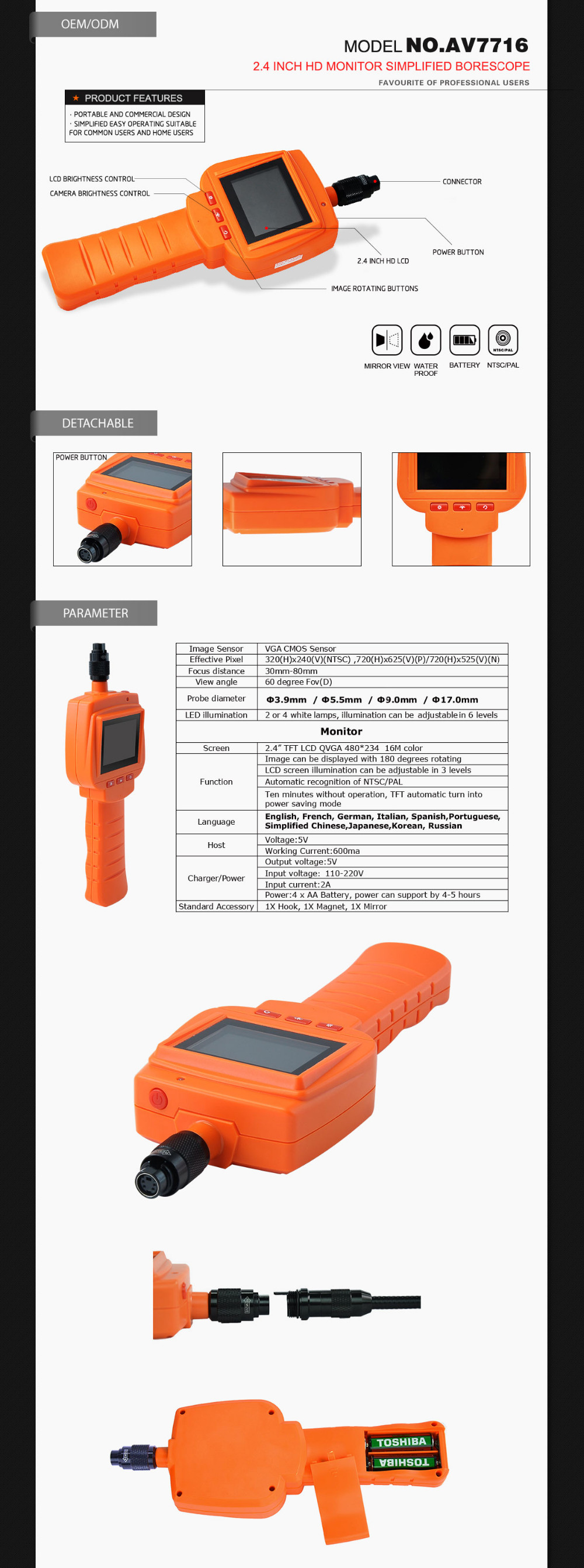

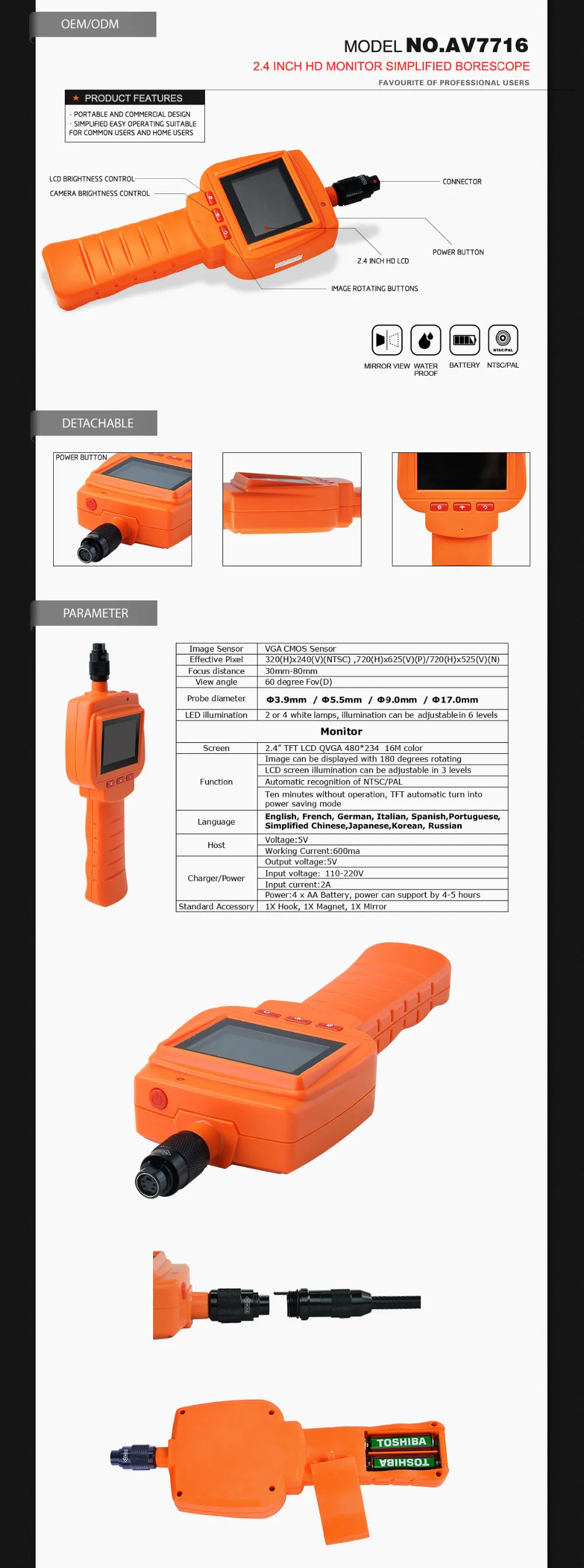

Part Name: 2.4'' Video Borescope With Detachable Snake tube
Specification
Item NO.			AV7716/3.9mm
Image Sensor			VGA CMOS Sensor, Sensor area 1 /18"
Effective Pixel			320(H)x240(V)(NTSC)
Focus distance			20mm-60mm
View angle			60 degree Fov(D)
Probe diameter			Φ3.9mm
LED illumination			2 lamps, illumination can be adjustable in 6 levels
Item NO.			AV7716/5.5mm
Image Sensor			VGA CMOS Sensor, Sensor area 1 /12"
Effective Pixel			720(H)x625(V)(P)/720(H)x525(V)(N)
Focus distance			30mm-80mm
View angle			60degree Fov(D)
Probe diameter			Φ5.5mm
LED illumination			4 lamps, illumination can be adjustable in 6 levels
Item NO.			AV7716/9.0mm
Image Sensor			VGA CMOS Sensor, Sensor area 1 /10"
Effective Pixel			720(H)x576(V)(P)/712(H)x480(V)(N)
Focus distance			30mm-80mm
View angle			60degree Fov(D)
Probe diameter			Φ9.0mm
LED illumination			4 lamps, illumination can be adjustable in 6 levels
Item NO.			AV7716/17mm
Image Sensor			VGA CMOS Sensor, Sensor area 1 /4"
Effective Pixel			720(H)x576(V)(P)/712(H)x480(V)(N)
Focus distance			30mm-80mm
View angle			60degree Fov(D)
Probe diameter			Φ17mm
LED illumination			4 lamps, illumination can be adjustable in 6 levels
Host
Data output			Video output, connected to TV or PC
Screen			2.4” TFT LCD QVGA 480*234 16M color
Record and Photograph			Resolution:640*480
			Photo format:JPG \BMP \JPEG
			Video Format:AVI
			Memory card:capacity of 32G mini SD/TF card
Function			Image can be displayed with 180 degrees rotating
			Real time clock with photo and video
			LCD screen illumination can be adjustable in 3 levels
			image dynamic monitoring (motion detecting) function
			Automatic recognition of NTSC/PAL
			Composite video output
			Ten minutes without operation, automatic closure of TFT into power saving mode
Language			English, French, German, Italian, Spanish,Portuguese, Simplified Chinese,,Japanese,Korean, Russian
Host			Voltage:5V
			Working Current:600ma
Charger/Power			Output voltage:5V
			Input voltage:110-220V
			Input current:2A
			Power:4 x AA Battery, power can support by 4-5 hours
Standard Accessory			1 X Adapter,1X USB Cable, 1XAV output Cable

 Shenzhen QBH Technology Development Co.,Ltd is seized of R&D,manufacturing,international trading three in one high technology developing enterprise. QBH is a professional manufacturer of video borescope,industrial Endoscope, inspection camera for years in Shenzhen,China.QBH three strong  features:
1.Professional OEM/ODM services are available, provide help for Emerson(USA) to  develop the new endoscope inspection camera head. 2. Possess of more than 10 patent products,such as  we design and develop 4 ways articulating electronic control video inspection system and HD  USB magnification manual focusing endoscope.  3.Providing customized service such as various  camera head with different dimension and length, even metal coupling connectors.      The exhibition information: QBH Technology has already taken part in several times of HKTDC Electronics Fair(Spring/Autumn) from Spring of 2012. We will go on to have the show in the future.We are sincerely welcome your visiting!Other choices

wifi borescope for iphone, android and tablet	high resolution inspection camera	wireless video borescope
automotive air conditioner Cleaning Borescope	wireless video automotive air conditioner cleaning borescope	mechanical triger control automotive cleaning borescope



Contact us if you need more details on Ip67 Waterproof Endoscopy. We are ready to answer your questions on packaging, logistics, certification or any other aspects about 2.4' Screen Waterproof Endoscopy、Endoscopy. If these products fail to match your need, please contact us and we would like to provide relevant information.
