20 M waterproof fiber optic cable plumbing pipeline inspection borescope

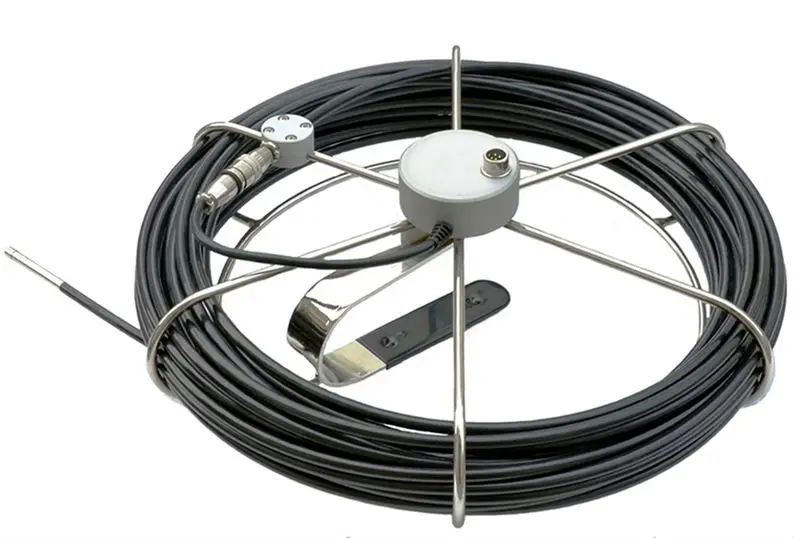

 Product Description   20 M flexible and waterproof fiber optic cable plumbing pipeline inspection camera    1. 5.5mm/9mm/15mm camera head lens are optional 2. 2.4Ghz wireless function borescope camera 3. 4 powerful white LED lights   The New Dart Industrial Inspection Endoscope / Borescope with a 5.5mm / 9mm /17 mm Diameter flexible imaging bundle containing enables the inspection of the most inaccessible areas. With light provided by the powerful Xenon Light Source problems can be identified easily.  The Scope has a fully flexible shaft enabling it to be inserted into very small diameter apertures where it will track along the pipe / duct / cavity. This unit is ideal for Electricians, Automotive, Aerospace, Locksmiths, Mechanics, Law Enforcement, pipeline, Gun Barrel Inspection etc.

Model	Wireless Inspection Camera
Image Sensor	CMOS Sensor
Effective Pixel	720(H)x625(V)(P)/720(H)x525(V)(N); 720(H)x576(V)(P)/712(H)x480(V)(N)
Focus distance	30mm-80mm
View angle	60 degree Fov(D)
Probe diameter	Φ3.9/Φ5.5/Φ9.0/Φ10/Φ17 mm;
Probe tube length	1m standard length(up to 20m)
LED illumination	2/4 lamps,illumination can be adjustable in 7 levels
Host
Screen	3.5''TFT LCD QVGA 320 x 240  16.7M color
Signal Transmission	2.4G Wireless Video Transmission,Wired Video Transmission
Record and Photograph	Photo format:JPG/BMP/JPEG
	Video Format:AVI
	Memory card:capacity of 32G mini SD/TF card
Input Voltage	110-220V
Output Voltage	5V-2A
Screen Battery	Built-in Li-battery 1200MAH 3.7V
Working Voltage	5V
Working Current	600MA/H
Handle Battery	4X AA Alkaline Battery

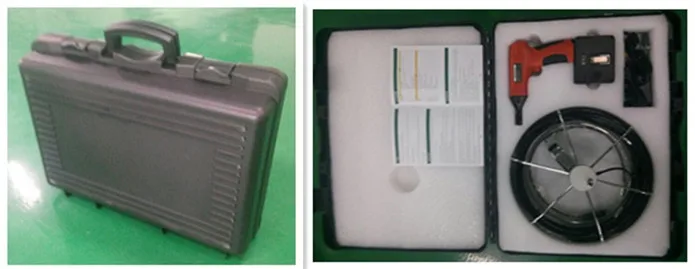

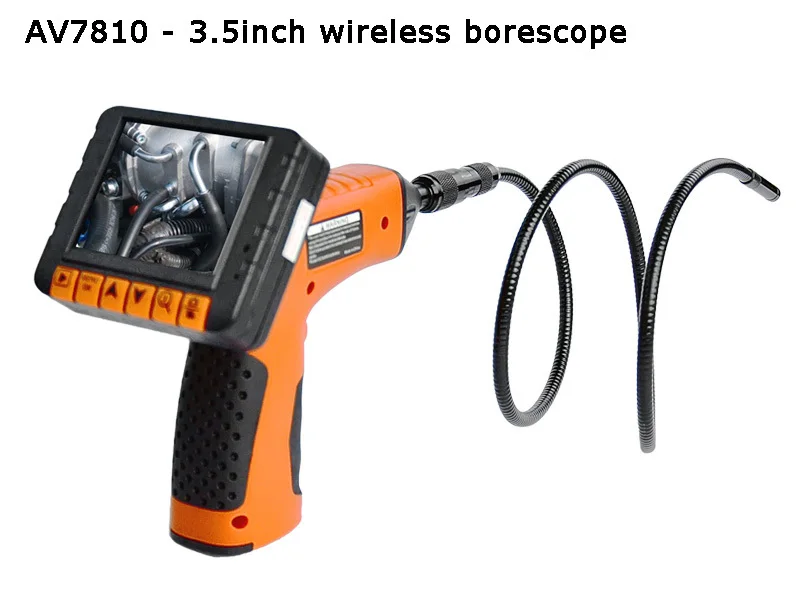

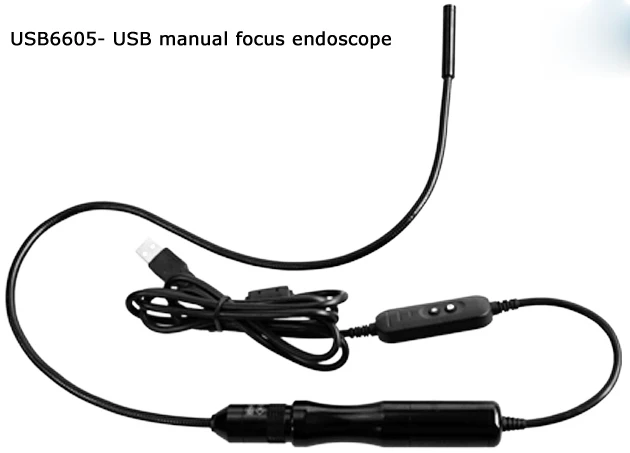

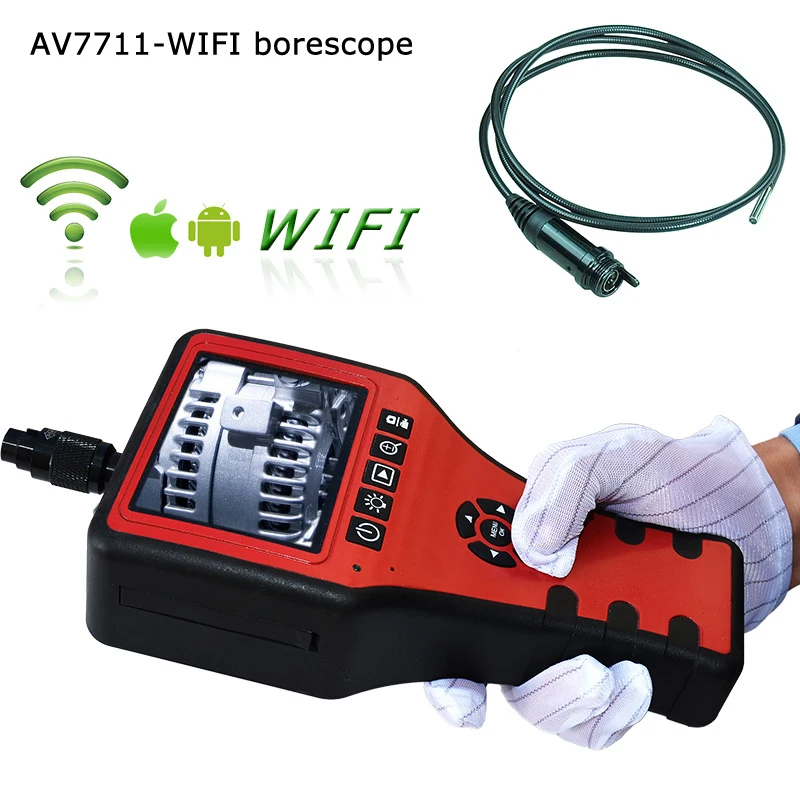

 Packaging & Shipping   Our Services 1. We are a professioal manufacturer of Video endoscope,4-way articulation Borescope,Usb Borescope,WiFi Endoscope,90° side Pipe Inspection camera. 2. We can provide ODM and OEM service according to your requirements. 3. Any question,you can contact us at any time.Model different models for choice:                   Company Information
Shenzhen QBH Technology Development Co.,Ltd is seized of R&D,manufacturing,international trading three in one high technology developing enterprise.QBH is a professional manufacturer of video borescope,industrial endoscope,inspection camera for several years in Shenzhen,China. QBH Three Strong Features:   1.    Professional OEM/ODM services are available, provide help for Emerson(USA) to develop the new endoscope inspection camera head. 2.     Possess of more than 10 Patent products,such as we design and develop 4-Ways articulating electronic control video inspection system and HD USB magnification Manual Focusing endoscope. 3.    Providing Customized Service such as various camera head with different dimension and length, even metal coupling connectors.FAQ1. Q: What mode of payment do you support?     A: Paypal, TT, Western Union are all acceptable payment terms.  According to your specific circumstances, you can choose the most suitable payment terms.   2. Q: What's length of the 20m waterproof pipe inspection industrial videoscope with 3.5inch TFT LCD monitor?      A: The standard tube is 20M waterproof fiber optic cable.   3. Q: How long time can the host and the screen keep working?    A: The screen can keeping working for 1 hours. The host can keep working for 6 hours. The screen charger time is 4-6 hours.Trade Shows

Contact us if you need more details on Industrial Borescope. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Pipeline Inspection Camera、Fiber Optic Cable Plumbing Pipeline. If these products fail to match your need, please contact us and we would like to provide relevant information.
