3.5 inch TFT monitor video snake endoscope borescope camera 3mm industrial endoscope

3.5 inch TFT monitor Video Snake Endoscope Borescope Camera 3mm Industrial Endoscope OEM/ODM Service for    Portable Wireless Digital Endoscope Camera One Hand Operation   Portable Wireless Digital Endoscope Camera Flexible/Rigid Tube Optional     Portable Wireless Digital Endoscope Camera

Item NO.	AV7810/3.9mm
Tube Dimension	D3.8X1000 mm
Probe Dimension	Φ3.9mm
Imaging Sensor	1/18" VGA sensor
Effective Pixels	320*240 (NTSC)
Focus Distance	20mm-60mm
View Angle	60degree Fov(D) F2.8/2.42mm  with IR cut
Item NO.	AV7810/5.5mm
Tube Dimension	D4.8X1000 mm
Probe Dimension	Φ5.5mm
Imaging Sensor	1/12" VGA sensor
Effective Pixels	720(H)x525(V)(N)/720(H)x625(V)(P)
Focus Distance	30mm-80mm
View Angle	60 degree Fov(D) F2.8/2.42mm  with IR cut
Item NO.	AV7810/9.0mm
Tube Dimension	D7.8X1000 mm
Probe Dimension	Φ9.0mm
Imaging Sensor	1/10" Color CMOS
Effective Pixels	712 (H)x480(V)(N)/720(H)x576(V)(P)
Focus Distance	30mm-80mm
View Angle	FOV=60° F2.8/2.42mm  with IR cut
Item NO.	AV7810/17mm
Tube Dimension	D9.3X1000 mm
Probe Dimension	Φ17mm
Imaging Sensor	1/4" Color CMOS
Effective Pixels	712 (H)x480(V)(N)/720(H)x576(V)(P)
Focus Distance	30mm-80mm
View Angle	FOV=60° F2.8/2.42mm  with IR cut
Host
Working Voltage	5V
Working Current	600MA/H
Screen working time	1 hour
Screen charger time	4-6 hours
Handle working time	6 hours
Input Voltage	110-220V
Output Voltage	5V/2A
Screen Battery	Built-in Li-battery 1200MAH 3.7V
Handle Battery	4X AA Alkaline Battery

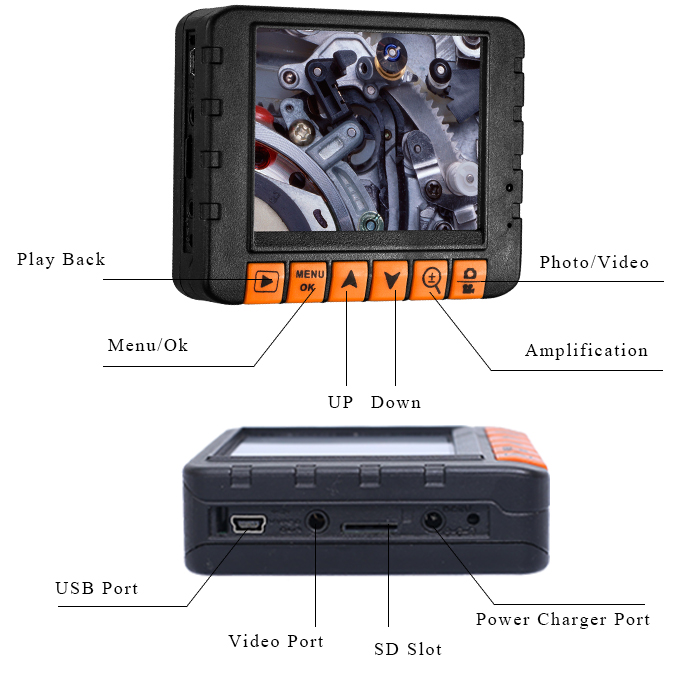

Screen	3.5” TFT LCD QVGA 320 x 240  16.7M color

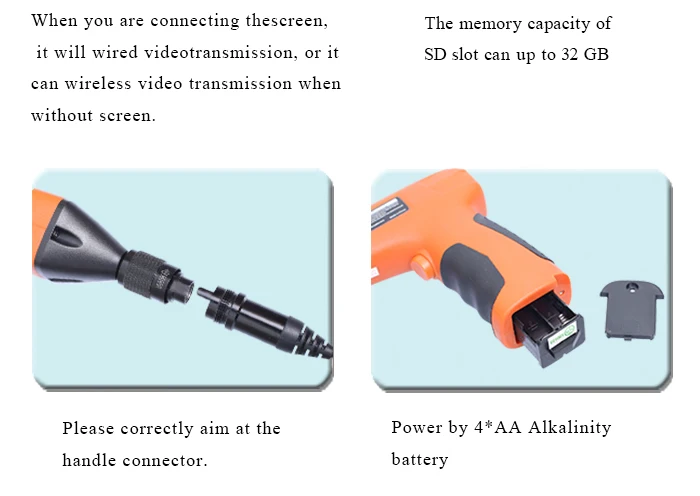

Signal Transmission	2.4G Wireless Video Transmission, Wired Video Transmission;
Image Format	JPG BMP JPEG
Photo Format	JPEG
Video Format	AVI
Function	1.Real time clock with photo and video 2.Time label of document saving 3.Picture freezing and taking photos in frozen state 4.Circulate recording 5.To enlarge or reduce the maximum: 8 times 6.Automatic recognition of NTSC/PAL 7.Composite video output
Memory Card	capacity of 32G mini SD/TF card
USB Interface	USB 2.0
Language	English, French, Germany, Italy, Spanish, Russian, Portuguese, Simplified Chinese,Japanese,Korean

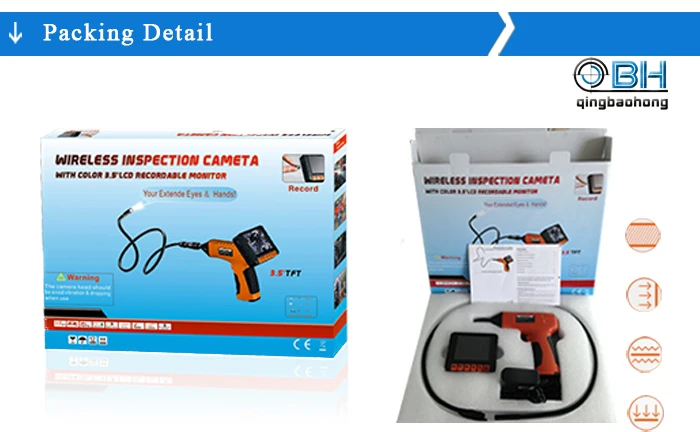

Package Dimension	Color box:400*300*60mm
	PE toolbox:450*365*130mm

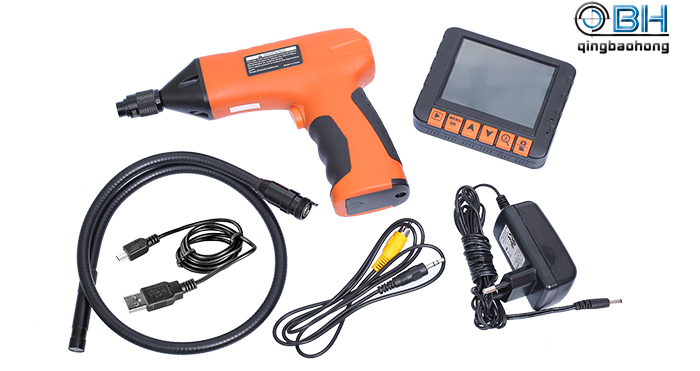

Standard Accessory	1 X Charger,1X USB wire,1X AV wire

  Shenzhen QBH Technology Development Co.,Ltd is seized of R&D manufacturing,international trading three in one high technology developing enterprise. QBH is a professional manufacturer of video borescope,industrial endoscope,inspectioncamera for years in Shenzhen,China.  QBH Three Strong Features: 1.Professional OEM/ODM services are available, provide help for Emerson(USA) to develop the new endoscope inspection camera head. 2. Possess of more than 10 Patent products,such as we design and develop 4-Ways articulating electronic control video inspection system and HD USB magnification Manual Focusing endoscope. 3.Providing Customized Service such as various camera head with different dimension and length, even metal coupling connectors.   The Exhibition Information   QBH has already taken part in several times of HKTDC Electronics Fair(Spring/Autumn) from Spring of 2012. We will go on to have the show in the future. We are sincerely welcome your visiting!

Contact us if you need more details on 3mm Industrial Endoscope. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Video Snake Endoscope Borescope Camera、Endoscope Camera With 3.5 Inch Tft Monitor. If these products fail to match your need, please contact us and we would like to provide relevant information.
